Product Description

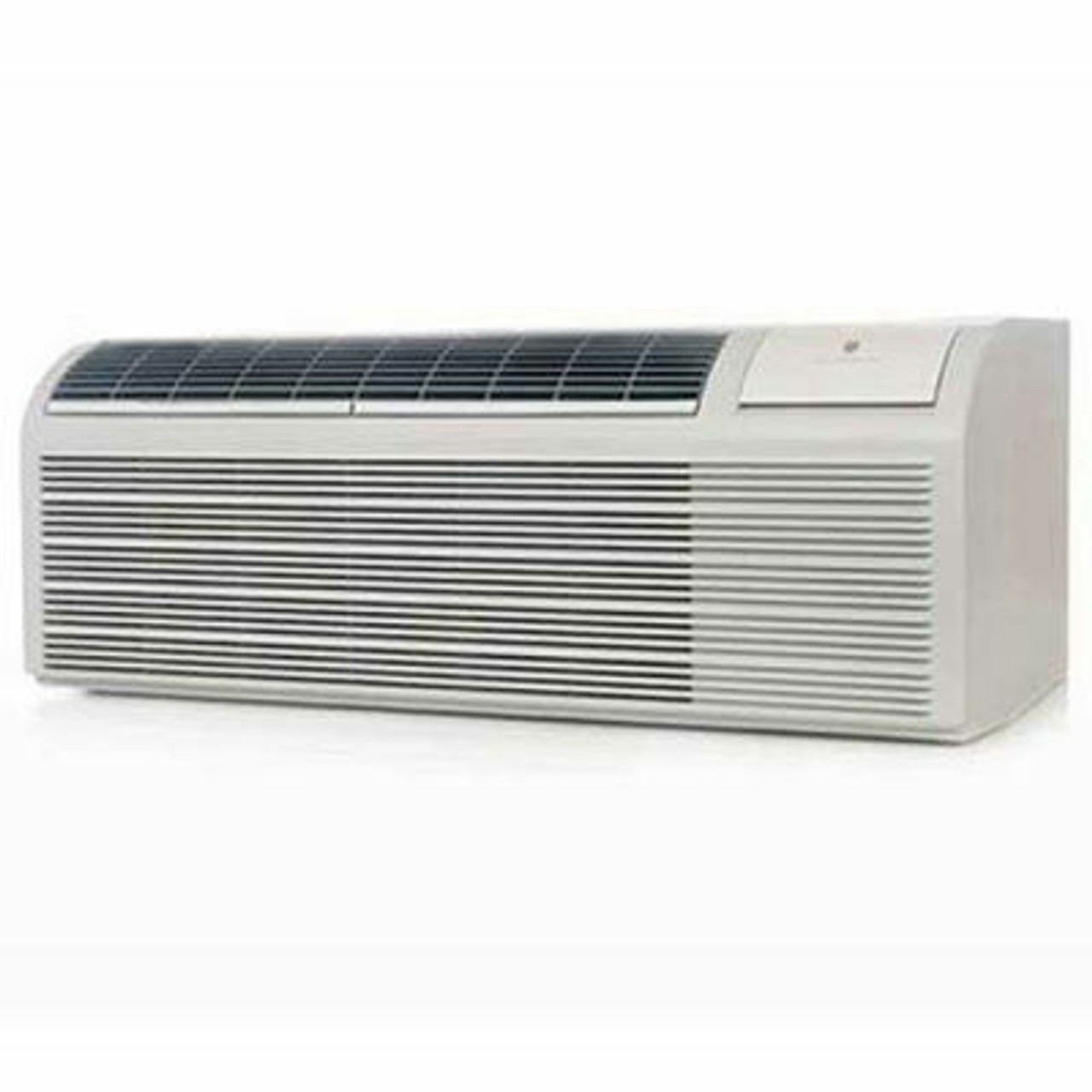

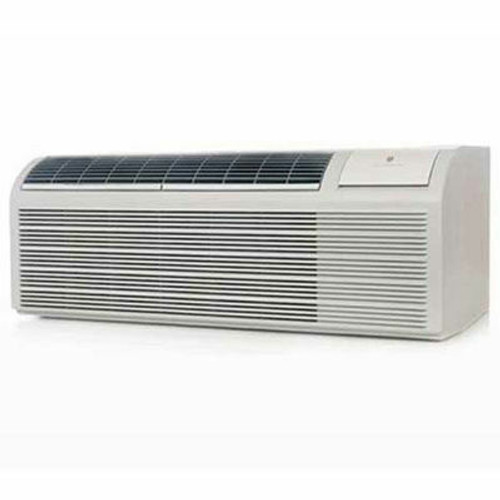

Friedrich PDH07K3SG 7,200 BTU Packaged Terminal Air Conditioner with Heat Pump w/3kw Electric Heat, 13.0 EER, 1.7 Pts/Hr Dehumidification, Dual Motors, Room Freeze Protection and 230/208 Volts
Durable and Reliable Construction
- Stainless steel endplates reduce outdoor coil corrosion.
- Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish and cured in an oven for exceptional durability.
- Additional heating element bottom plate above an improved heat shield provides extra thermal protection.
- Additional thermistor on the blower scroll outlet regulates internal temperature.
- Factory run-tested units reduce problems in the field.
- Internal diagnostic program can alert maintenance to component failures or operating problems. Fourteen numeric service error codes stored in memory facilitate rapid unit diagnostics.
- Easy access anti-microbial filters simplify maintenance and extend the life of the product.
- Room freeze protection initiates heat if temperature falls to 40°F in an unoccupied room.
- Random compressor restart protects electrical systems from overload when power is restored.
- Tamper-resistant, anodized stamped aluminum grille withstands chalking and oxidation.
- Break-proof control door design maintains the integrity of the unit.
- Indoor coil frost sensor protects the compressor to lengthen the life of the unit.
- Diamonblue Technology protects the outdoor coil from harsh environments.
- Industry leading warranty features 2 year full warranty on parts and labor and 5 year limited warranty.
- Nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.
Energy Efficient and Energy Smart
- Super-efficient refrigeration design with 13.0 EER.
- Exceptional FriedrichLink energy management thermostats available (wired and wireless) with integrated occupancy sensor, five distinct energy presets and comprehensive remote management capability.
- Advanced coil design adds more surface area leading to higher efficiencies.
- Thicker steel inner-wall and foam construction decreases thermal transfer and energy loss.
- Electronic temperature limiting to adjust low/high temperature range limits for reduced energy usage.
- Slinger ring technology in condensate removal system cools the coil and increases efficiency.
- Desk control ready to allow hotel owners to control units from a central location.
Comfort, Health and IAQ
- Dehumidification removes up to 1.7 pints/hour of moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.
- Constant Fan mode provides constant fan operation in cooling or heating modes to create a steady stream of white noise that masks sound level changes when the compressor cycles on/off.
- Fresh air damper brings in fresh outside air when desired.
- Intuitive unit controls are user friendly with easy-to-read LED display that can show either set-point or actual room temperature as selected by owner.
- Anti-microbial air filters are easy to access and washable.
- Instant Heat on heat pump models quickly heats a room to the desired temperature for increased comfort.
- Even-heat monitoring checks room temperature and automatically adds heat boost if necessary.
- Automatic periodic sampling of room temperature to ensure desired conditions are maintained.
- Reversible indoor air louvers to easily change direction of airflow.
Ease Of Maintenance and Installation
- Ease of SKU creation as universal heaters with heat capacities are determined by the power cords; can achieve up to 40 PTAC SKUs with 16 units by changing the power cord size.
- Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters.
- Remote thermostat pop-out wiring module allows easier wiring and unit change out without rewiring thermostat.
- Compact front is designed to preserve indoor floor space with a depth of 7-3/4 inches.
- Faultless Sure-hold Front Cover System securely attaches the front each time.
- Inner wall service plate provides service access to tangential blower bearing without having to open up the entire inner wall.
- May be installed flush with the floor.
Sound Reduction Technology
- Two permanently lubricated fan motors for added durability and reduced sound levels indoors.
- Quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly.
- High-density insulation and steel inner wall block outdoor noise.
